Ford Focus Owners Manual: Engine compartment overview - 1.4L Duratec-16V (Sigma)/1.6L Duratec-16V (Sigma)/1.6L Duratec-16V Ti-VCT (Sigma)

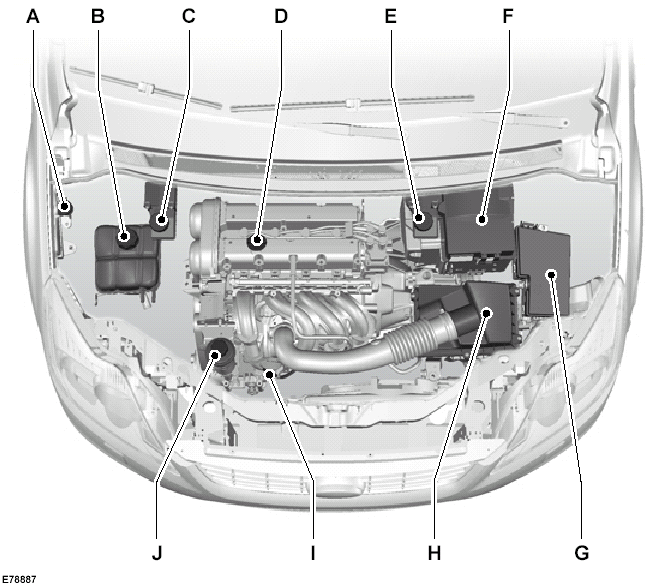

A. Screen washer fluid reservoir*: See Washer fluid check.
B. Engine coolant reservoir*: See Engine coolant check.
C. Brake and clutch fluid reservoir (right-hand drive)*: See Brake and clutch fluid check.
D. Engine oil filler cap*: See Engine oil check.
E. Brake and clutch fluid reservoir (left-hand drive)*: See Brake and clutch fluid check.
F. Battery: See Vehicle battery.
G. Engine compartment fuse box: See Fuses.
H. Air cleaner: No maintenance necessary.
I. Engine oil dipstick*: See Engine oil check.
J. Power steering fluid reservoir: See Power steering fluid check.
*For easy identification, filler caps and the engine oil dipstick are marked in colour.
Opening and closing the bonnet
Opening the bonnet
WARNING:
To prevent damage to, or loss of the
key, remove the key immediately
after opening and swivel the Ford
badge back.
Note: On vehicles with keyless entry, use
the sp ...
Engine compartment overview - 1.8L Duratec-HE (MI4)/2.0L Duratec-HE (MI4)
A. Screen washer fluid reservoir*: See Washer fluid check.
B. Engine coolant reservoir*: See Engine coolant check.
C. Brake and clutch fluid reservoir (right-hand drive)*: See Brake and clutch
f ...
More about Ford Focus:
Ford Focus Fender Splash Shield
Removal and Installation
With the vehicle in NEUTRAL, position it on a hoist. For additional information,
refer to Section 100-02.
Remove the 10 fender splash shield pin-type retainers.
Remove the fender splash shield-to-lower air deflector screw.
Remove the fender ...
