Ford Focus Service Manual: Wheel Speed Sensor - Rear

Ford Focus Service Manual / Chassis / Brake Control and Vehicle Dynamics / Sensors / Wheel Speed Sensor - Rear

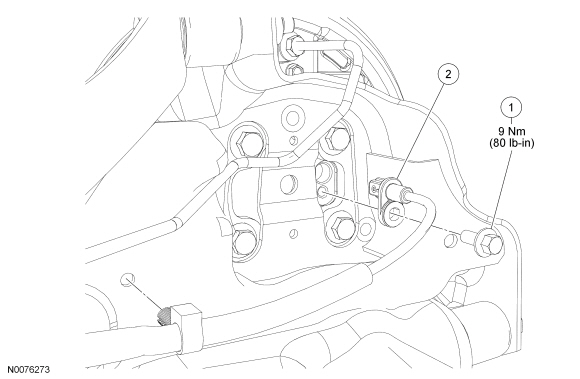

Item Part Number Description
1 — Wheel speed sensor bolt (part of 2C204)
2 2C204 Wheel speed sensor

Removal and Installation

  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Section  100-02.
  1. Remove the wheel speed sensor bolt.
    • To install, tighten to 9 Nm (80 lb-in).
  1. NOTE:

    Not all the clips are part of the sensor assembly and may not be reusable.

    Disconnect the wheel speed sensor electrical connector.

    • Remove the sensor by detaching the pin-type retainer and pulling the sensor grommets out of the clips.
  1. To install, reverse the removal procedure.
