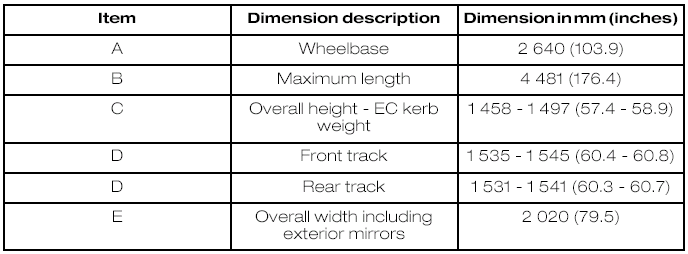

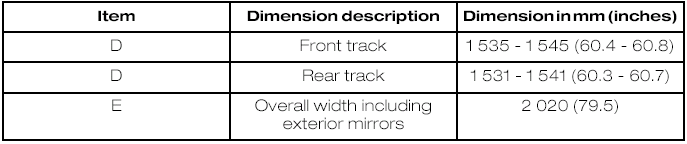

Vehicle dimensions

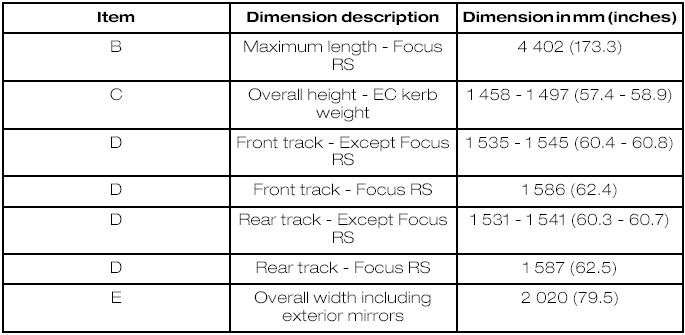

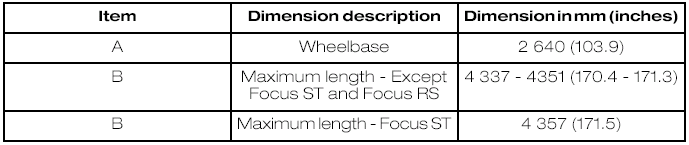

3-door and 5-door

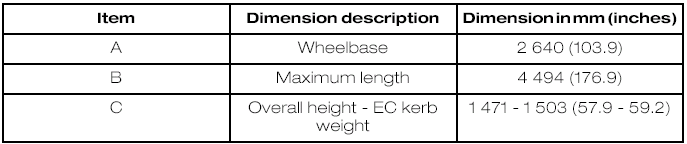

4-door

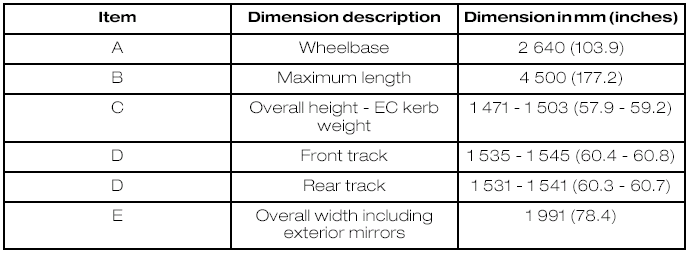

Estate
Convertible

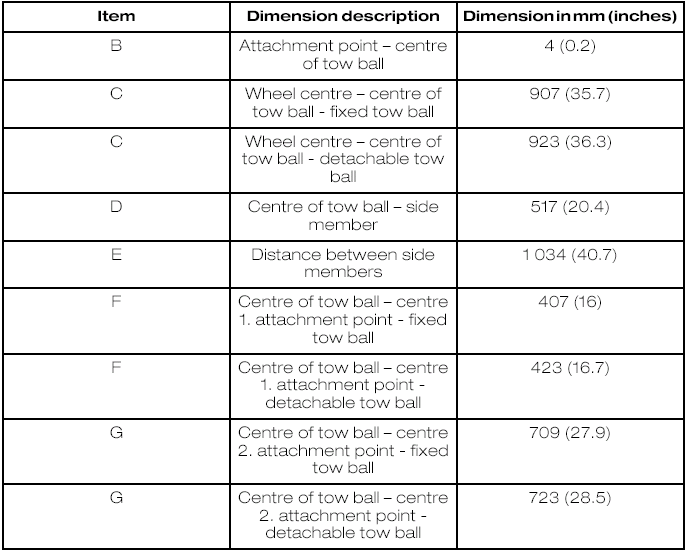

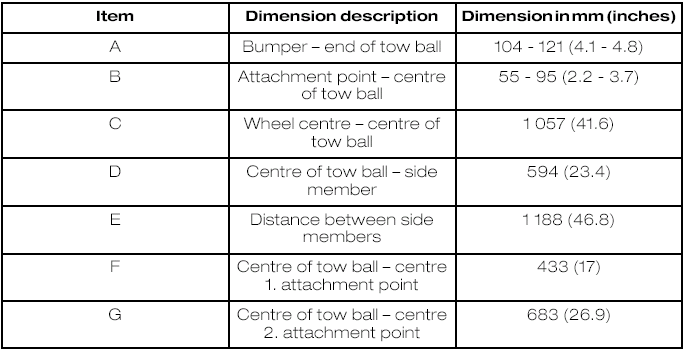

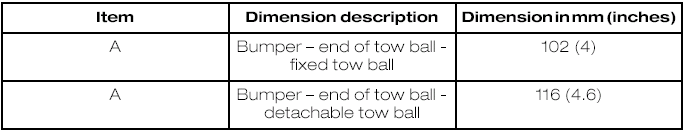

Towing equipment dimensions

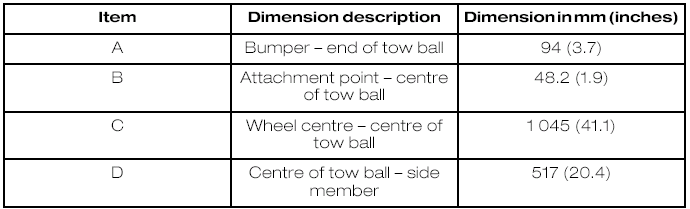

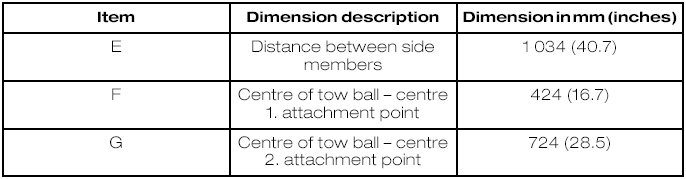

3-door and 5-door
All measurements refer to towing equipment officially released by Ford.

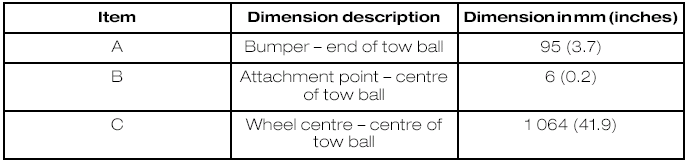

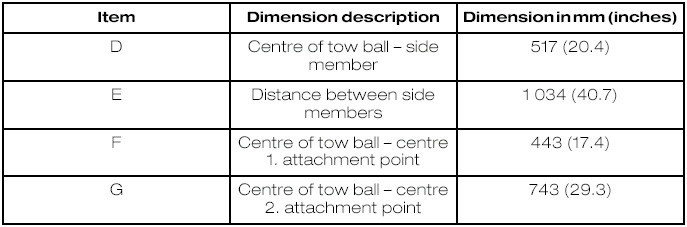

4-door
All measurements refer to towing equipment officially released by Ford.
Estate
All measurements refer to towing equipment officially released by Ford.
Convertible
All measurements refer to towing equipment officially released by Ford.
Ford Focus Wheel Alignment Angles
Camber
Negative and Positive Camber
Camber is the vertical tilt of the wheel when viewed from the front. Camber can
be positive or negative and has a direct effect on tire wear.
Caster
Caster is the deviation from vertical of an imaginary line drawn through the
pivot points (top of str ...
