Ford Focus Service Manual: Transaxle Rear Support Insulator
Ford Focus Service Manual / Powertrain / Transmission/Transaxle / Transmission Mounts / Transaxle Rear Support Insulator

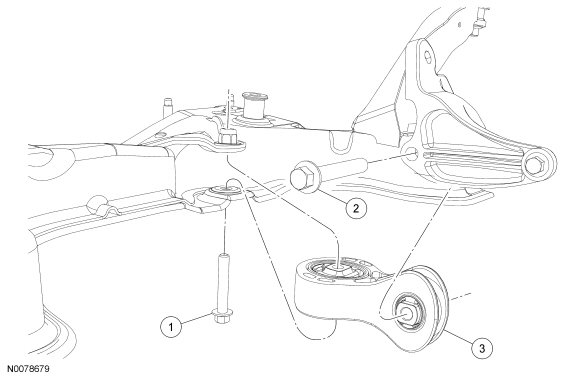

| Item | Part Number | Description |
|---|---|---|
| 1 | W702826-S | Roll restrictor-to-subframe bolt |
| 2 | W702801-S | Roll restrictor-to-transaxle bracket bolt |
| 3 | 6P082 | Roll restrictor |
Removal and Installation
- With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Section 100-02.
- Remove the roll restrictor bolt at the subframe.
- To install, tighten to 70 Nm (52 lb-ft).
- Remove the roll restrictor bolt from the transaxle bracket.
- To install, tighten to 70 Nm (52 lb-ft).
- Remove the roll restrictor.
- To install, reverse the removal procedure.
