Ford Focus Service Manual: Accelerator Pedal
Ford Focus Service Manual / Powertrain / Internal Combustion Powertrain Control / Engine Control / Accelerator Pedal

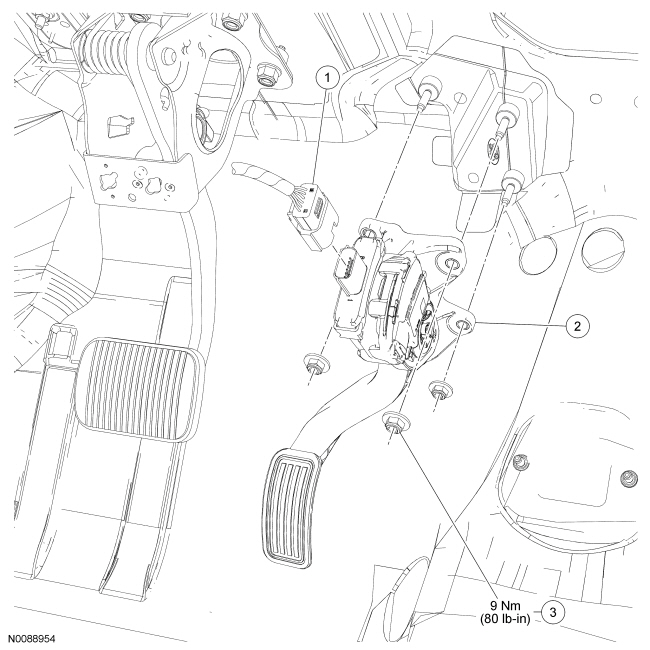

| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | Accelerator pedal sensor electrical connector |
| 2 | 9F836 | Accelerator pedal and sensor assembly |
| 3 | W702751 | Accelerator pedal and sensor nut (3 required) |
Removal and Installation
- Disconnect the accelerator pedal sensor electrical connector.
- Remove the 3 nuts and the accelerator pedal and sensor assembly.
- To install, tighten to 9 Nm (80 lb-in).
- To install, reverse the removal procedure.
