Ford Focus Service Manual: Brake Pedal and Bracket

Ford Focus Service Manual / Chassis / Brakes / Hydraulic Brakes / Brake Pedal and Bracket

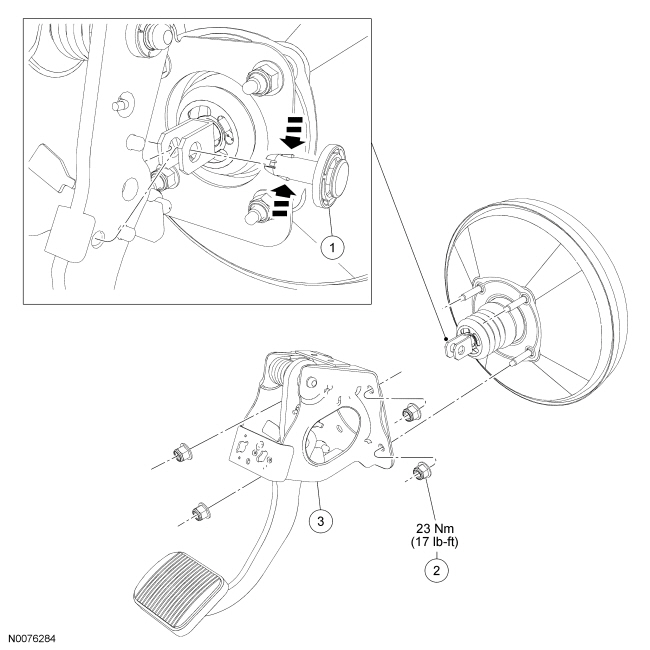

NOTE:

Automatic transmission shown, manual transmission similar.



Item Part Number Description
1 2L523 Brake booster actuating rod pin
2 W520212 Brake booster retaining nut (4 required)
3 2450 Brake pedal and bracket assembly

Removal and Installation

All vehicles

NOTICE: Do not service the brake pedal or brake booster without first removing the stoplamp switch and speed control deactivator switch. These switches must be removed with the brake pedal in the at-rest position. Switch plungers must be compressed for the switch to rotate in the bracket. Attempting to remove the switch when the plunger is extended (during pedal apply) will result in damage to the switch.

  1. Remove the stoplamp switch. For additional information, refer to Section  417-01.

Vehicles with manual transaxle

  1. If equipped, remove the Clutch Pedal Position (CPP) switch. For additional information, refer to Section  303-14.
  1. Remove the 2 bolts and position the clutch master cylinder aside.
    • To install, tighten bolts to 9 Nm (80 lb-in).

  1. Remove the clutch master cylinder actuating rod from the clutch pedal.

All vehicles

  1. Remove the 4 brake booster nuts.
    • To install, tighten to 23 Nm (17 lb-ft).
  1. Remove the brake booster actuating rod from the brake pedal in the following sequence.
    1. Disengage the tabs.
    1. Remove and discard the brake booster actuating rod pin.
  1. Remove the brake pedal bracket.
  1. NOTICE: Do not press, pull or otherwise move the brake pedal while installing the stoplamp switch or the speed control deactivator switch. These switches must be installed with the booster push rod attached to the brake pedal and with the brake pedal in the at-rest position. Installing these switches with the brake pedal in any other position will result in incorrect adjustment and may damage the switches.

    To install, reverse the removal procedure.

    • Install a new brake booster actuating rod pin.
