Ford Focus Service Manual: Receiver Drier

Ford Focus Service Manual / HVAC / Cooling / Receiver Drier

Material
Item Specification
Motorcraft® PAG Refrigerant Compressor Oil YN-12-D WSH-M1C231-B

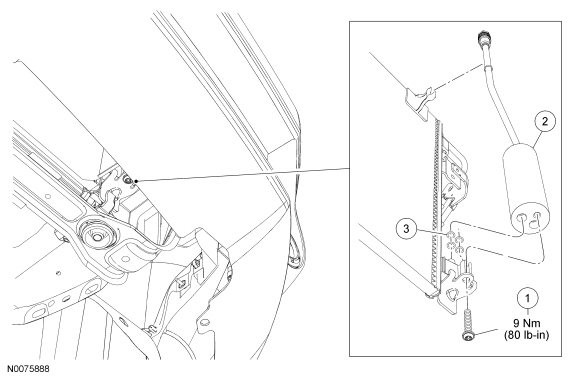

Item Part Number Description
1 Receiver/drier bolt (part of 19C836 kit)
2 19C836 Receiver/drier
3 O-ring seal (4 required) (part of 19C836 kit)

Removal and Installation

  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Section  100-02.
  1. Recover the refrigerant. For additional information, refer to Section  412-00.
  1. Remove the lower radiator splash shield. For additional information, refer to Section  501-02.
  1. Remove the receiver/drier fitting bolt.
    • To install, tighten to 9 Nm (80 lb-in).
  1. Detach and remove the receiver/drier.
    • Discard the O-ring seals.
  1. To install, reverse the removal procedure.
    • Install new O-ring seals.
    • Lubricate the refrigerant system with the correct amount of clean PAG oil. For additional information, refer to Section  412-00.
  1. Evacuate, leak test and charge the refrigerant system. For additional information, refer to Section  412-00.
