Ford Focus Service Manual: Seat Bolster - Rear

Ford Focus Service Manual / Body / Seating / Seats / Seat Bolster - Rear

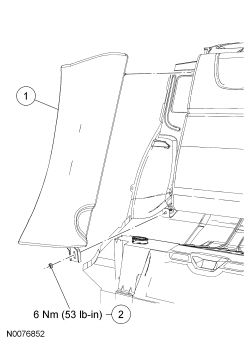

NOTE:

RH shown, LH similar.



Item Part Number Description
1 600B28 Seat bolster
2 W520101 Seat bolster nut

Removal and Installation

  1. Remove the rear seat cushion.
    • Locate the cushion latch releases under the cushion front edge.
    • Push to release the 2 latches and remove the cushion.
  1. Remove the seat bolster nut from the lower stud.
    • To install, tighten to 6 Nm (53 lb-in).
  1. From the luggage compartment, release the upper retainer behind the seat bolster and remove.
    • If installing a new seat bolster, install a new upper retainer.
  1. NOTE:

    Make sure the safety belt webbing is not twisted and the safety belts and buckles are accessible to the occupants.

    To install, reverse the removal procedure.
