Ford Focus Service Manual: Steering Wheel Rotation Sensor
Ford Focus Service Manual / Chassis / Steering / Steering Wheel and Column / Steering Wheel Rotation Sensor
Special Tool(s)
|
Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool |

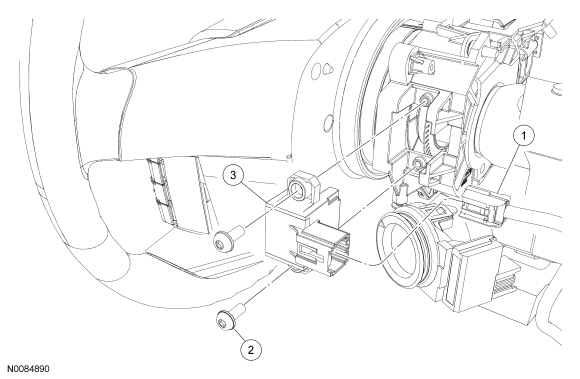

| Item | Part Number | Description |
|---|---|---|
| 1 | — | Steering wheel rotation sensor electrical connector (part of 19D887) |
| 2 | W506942 | Steering wheel rotation sensor bolt (2 required) |
| 3 | 3F818 | Steering wheel rotation sensor |
Removal and Installation
- Remove the steering column shroud. For additional information, refer to Section 211-04.
- Disconnect the steering wheel rotation sensor electrical connector.
- Remove the 2 bolts and the steering wheel rotation sensor.
- To install, reverse the removal procedure.
- Carry out the IVD Initialization sequence. Follow the scan tool directions.
