Ford Focus Service Manual: Power Steering Pump Pulley

Ford Focus Service Manual / Chassis / Steering / Hydraulic Steering / Power Steering Pump Pulley

Special Tool(s)

Installer, Power Steering Pump Pulley 211-185 (T91P-3A733-A)

Remover, Power Steering Pump Pulley 211-016 (T69L-10300-B)

Removal

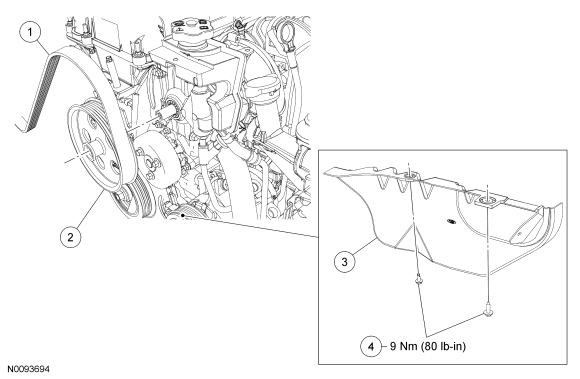

Item Part Number Description
1 6C301 Accessory drive belt
2 3A733 Power steering pump pulley
3 6775 Accessory drive belt splash shield
4 Accessory drive belt splash shield bolts (2 required)





Item Part Number Description
5 W701107 Coolant expansion tank bolts (2 required)
6 8C045 Coolant expansion tank

NOTICE: While repairing the power steering system, care should be taken to prevent the entry of foreign material, or failure of the power steering components may result.

  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Section  100-02.
  1. Remove the 2 bolts and the accessory drive belt splash shield.
  1. Rotate the accessory drive belt tensioner clockwise and position the accessory drive belt away from the power steering pump pulley.
  1. Remove the 2 engine coolant expansion tank bolts, carefully pull the reservoir up and off the locating pin and position it aside.
  1. Using the Power Steering Pump Pulley Remover, remove the power steering pump pulley.

Installation

  1. NOTE:

    Make sure the pulley is flush with the end of the power steering pump shaft.

    Using the Power Steering Pump Pulley Installer, install the power steering pump pulley.


  1. Position the engine coolant reservoir onto the locating pin and install the 2 bolts.
    • Tighten to 4 Nm (35 lb-in).
  1. Rotate the tensioner clockwise and position the accessory drive belt on the power steering pump pulley.
  1. Position the accessory drive belt splash shield and install the 2 bolts.
    • Tighten to 9 Nm (80 lb-in).
