Ford Focus Service Manual: Register
| Item | Part Number | Description |
|---|---|---|

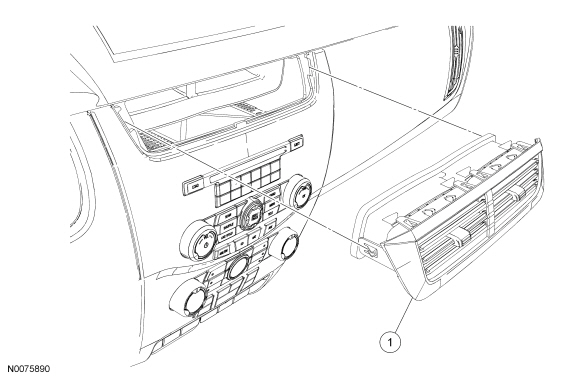

| 1 | 18893 | Center register |
| Item | Part Number | Description |
|---|---|---|
| 2 | 18893 | Outer register (RH or LH) |
Removal and Installation
Center register
- Using a suitable tool, carefully pry around the outer edges of the center register to release the clips.
- Remove the center register.
- To install, reverse the removal procedure.
LH or RH outer register
- Using suitable tools, disengage the 4 register clips while carefully prying around the outer edges of the register.
- Remove the outer register.
- To install, reverse the removal procedure.
Heating Ventilation Air Conditioning (HVAC) Module
Item
Part Number
Description
1
W505943
HVAC module screw (4 required)
2
19980
HVAC module
Removal and Installation
Remove the ce ...
